PypeServer's optional label printing module allows you to generate part labels with critical information in the form of text, barcodes, and QR codes, as well as logos and other features. These part-specific labels facilitate inventory tracking and provide links to design drawings and fabrication notes for use in the shop and in the field.

Label with Data from CAD and from Production

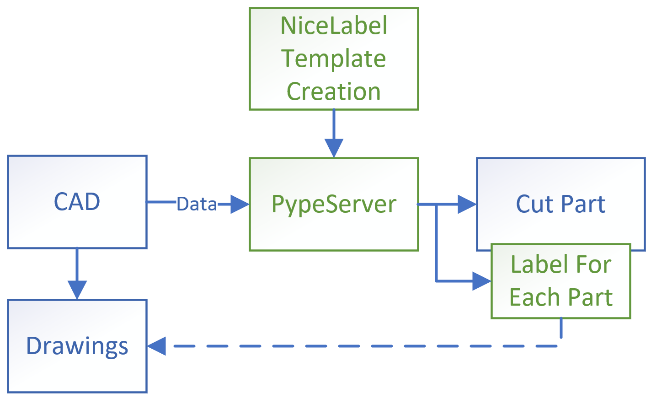

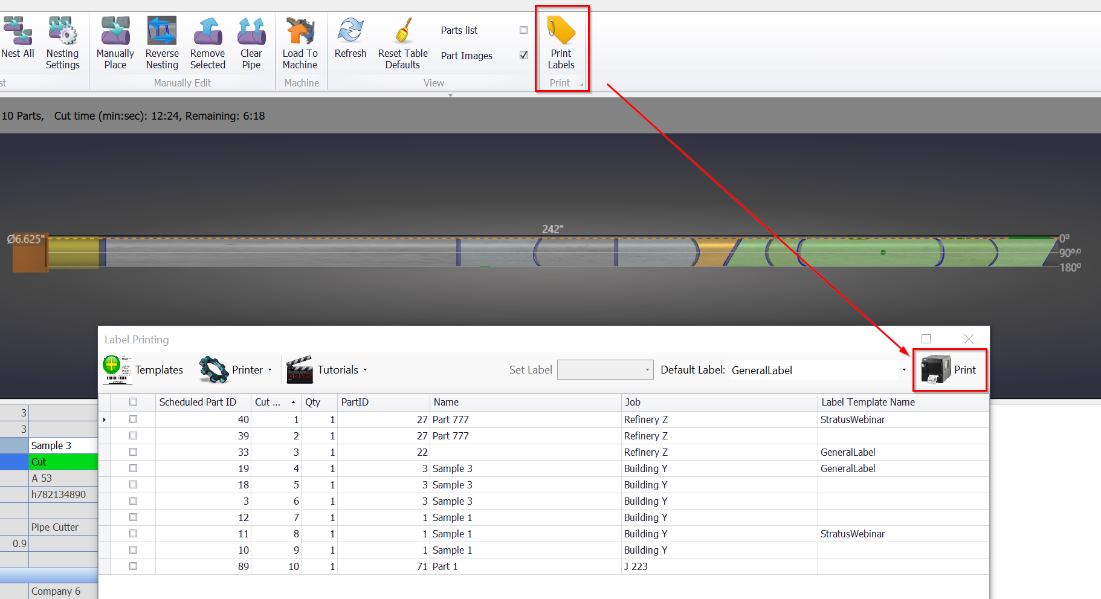

With PypeServer's powerful CAD importing capabilities, your design data can flow into PypeServer and onto labels as parts are cut. Printing labels right at the machine lets you include production information like the heat number, the cut date, and the part's unique PypeServer ID. However, if you prefer to print labels using a PypeServer remote seat it works great too. The label printing module can print to up to three different label printers anywhere on your network.

Design Custom Label Templates

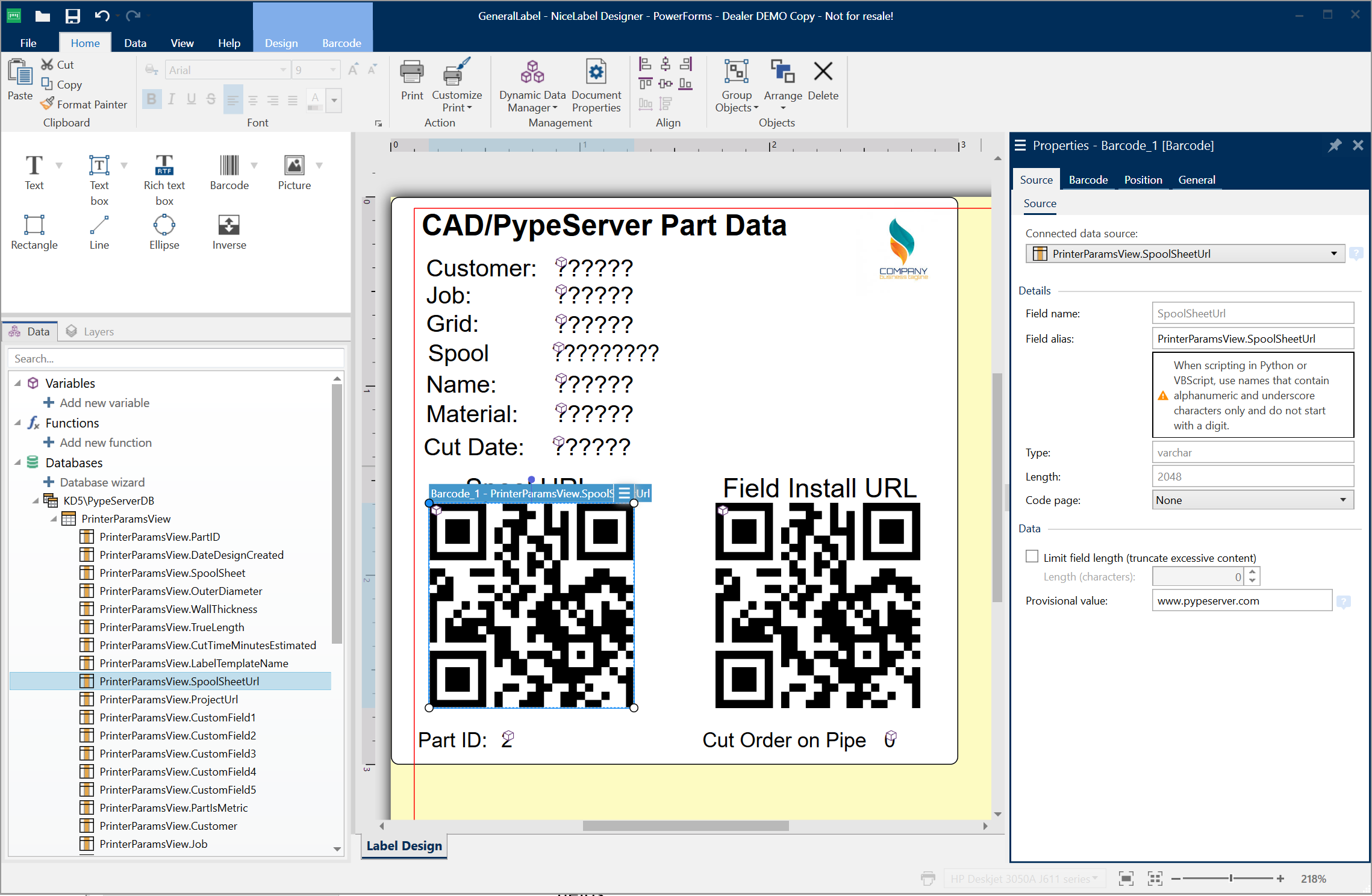

PypeServer's label printing module is built around NiceLabel, a powerful label design tool that allows you to easily create label templates that will dynamically update using PypeServer data. You can create an unlimited number of templates for different printers, different jobs, different contracts, different customers, you name it.

What's Included:

• The PypeServer Label Printing Module, including NiceLabel PowerForms Suite

• Unlimited label templates

• Printing on to up to three different printers located at the pipe profiler or remotely

• Support for all major printer brands and types. If Windows can print to it, so can PypeServer

• Feature updates and support for as long as you maintain an active license

• Does not include printer(s), associated peripherals, consumables, or hardware support

How to Order

Simply contact PypeServer at (425) 333-7736 or sales@pypeserver.com and let us know you want to add Label Printing to your PypeServer Enterprise installation. No site visit is necessary, just give us temporary network access to your PypeServer computer and we can install the software and license remotely.
