Configuring your CAD for exporting the right PCF data

PypeServer does not provide support for how to export from CAD systems. (There are too many CAD systems and too many add-ons, configurations, and customer work-flows.) Please see the document "Importers" in the PypeServer training system for information PypeServer has gathered on exporting to PCF from various CAD systems.

If you find any helpful videos, please email them to Support@pypeserver.com so that we can add them to our Importers document.

Specifying Scheduled Pipe or Wall Thickness in your PCF file

PCF files do not require the specification of NPS pipe sizes or pipe wall thickness, thus it is up to the user to include information that will allow the PCF importer to determine pipe wall thicknesses.

Without any field mapping, the PCF importer will parse pipe NPS schedule sizes by looking for specific keywords in one of two places. You can also customize the keywords and location by creating a field mapping. The default behavior is discussed in this section. Section 5 discusses field mapping.

NPS schedule sizes are specified by the keyword SCH, or SCHEDULE, followed by a number, or simply the keyword STD, or SCH STD.

Specifying the NPS size in "ITEM-DESCRIPTION"

The most common location to locate this keyword (and schedule size) is in the "ITEM-DESCRIPTION" text for a given PIPE (or other parsed component) item.

Example

PIPE

END-POINT 34.5570 8.8345 -0.0000 8.0000 PL

END-POINT -37.5680 8.8345 -0.0000 8.0000 PL

ITEM-DESCRIPTION A53B GR B ERW SCH 40

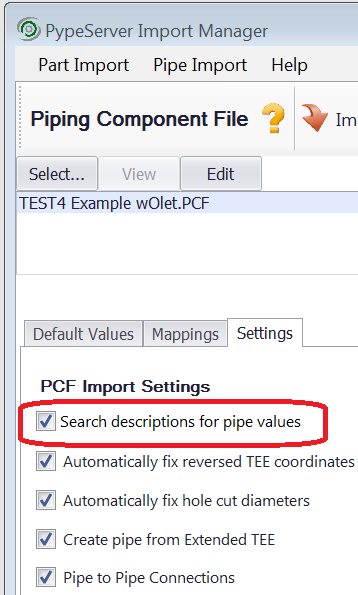

This ITEM-DESCRIPTION search location is not enabled by default. You can enable this in Import Settings for the PCF Importer. Change this setting as shown to the right:

Note: Using ITEM-DESCRIPTION will replace the Standard functionality described in the previous section. When mapping (covered in the "Using the Field Mapper" document), this is commonly the preferred method.

Specifying NPS sizes in the MATERIALS Section

By default the PCF importer will follow the PCF specification, which specifies that pipe values and attributes of pipes (such as pipe schedule and wall thickness) be defined in the MATERIALS section of the PCF file¹. The MATERIALS section is divided into sub-sections that are indexed by an ITEM-CODE or a MATERIAL-IDENTIFIER attribute.

??

Example

PIPE

END-POINT 34.5570 8.8345 -0.0000 8.0000 PL

END-POINT -37.5680 8.8345 -0.0000 8.0000 PL

MATERIAL-IDENTIFIER 2

ITEM-DESCRIPTION A53B GR B ERW

MATERIALS

MATERIAL-IDENTIFIER 2

DESCRIPTION A53B GR B ERW SCHEDULE 40

Note: The SCHEDULE keyword can also be SCH

Intersecting PIPE to PIPE components

Connecting Pipes to Pipes (via saddle cuts) is not defined in the PCF specification, however PypeServer supports this.

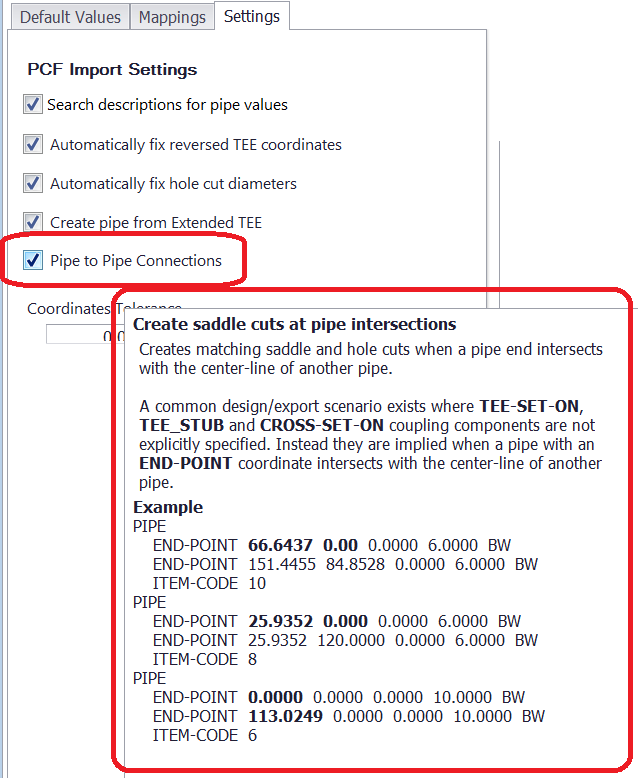

To enable this, in the PCF importer settings, check the box circled (shown to the right). Additional description is seen by hovering over the selection.

Pipe to pipe intersections will be interpreted as saddles set on the run pipe, with a hole the ID of the set-on pipe.

Declaring TEE-SET- Types as Pipe (and not fittings)

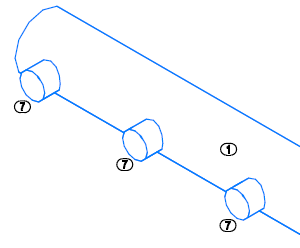

Customers often specify connecting pipes as TEE-SET-ONs or TEE-SET-INs. Shown to the right is an example of a 36" pipe with 16" saddle pipes on the run.

While not defined per the .pcf specification, this is supported in PypeServer two ways, as discussed in the next two subsections.

Treat all TEE-SET-ON/IN/STUB items as pipe

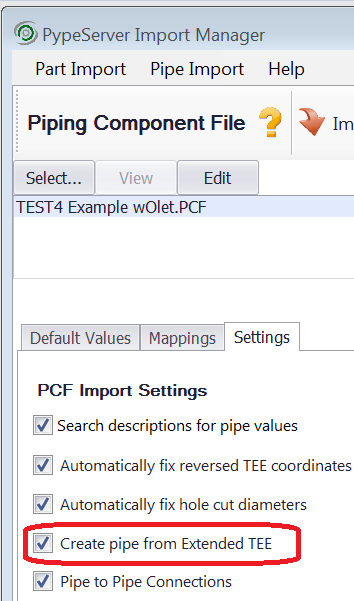

In the PCF Importer Settings tab, check the item circled below.

Explicitly define each TEE-SET-ON/IN/STUB item as a pipe

The other way to declare TEE SET ON/IN/STUB items as pipe is by using the "PSPIPE" keyword in the ITEM-DESCRIPTION (or MATERIAL DESCRIPTION if you are using that field).

TEE-SET-ON

CENTRE-POINT -159.5067 -0.0000 120.3750

BRANCH1-POINT -159.5067 -28.0000 120.3750 16.0000 BW

ITEM-CODE 7

ITEM-DESCRIPTION Pipe Saddle - A53 ERW Grade B Carbon Steel PSPIPE SCH Std

When importing TEE-SET- types as pipe, the same rules as PIPE apply for the system discerning OD and Wall thickness. In this case the importer is parsing this as an NPS 16 schedule 40 pipe.

Mapping additional fields

Additional data can be imported from PCF files into PypeServer by using a Mapping Table. These mappings are configured in the PypeServer importer. They:

• Allow specific values in the PCF file to be assigned to fields

• Allow cut templates (templates defined in PypeServer) to be assigned to the cuts defined in the PCF file (endcuts), and also inferred in the PCF file (holes from Set-ons and OLETs).

What is important to understand first is what data to add to your PCF file. The mapping of that data is a one-time setup that is more complex and can be performed with the help of PypeServer. Please review "Using the Field Mapper" for a deeper understanding of how field mapping works. In this section, the PCF formatting is discussed.

Using Cut Templates

Please review "Using the Field Mapper" for a deeper understanding of how field mapping works. In this section, the PCF formatting is discussed.

You can assign cut templates to both end-cuts and holes generated by Pipe-to-Pipe Intersections, TEE-SET-types setting on pipe, and OLETs on pipe.

Mapping OLETs

The Problem

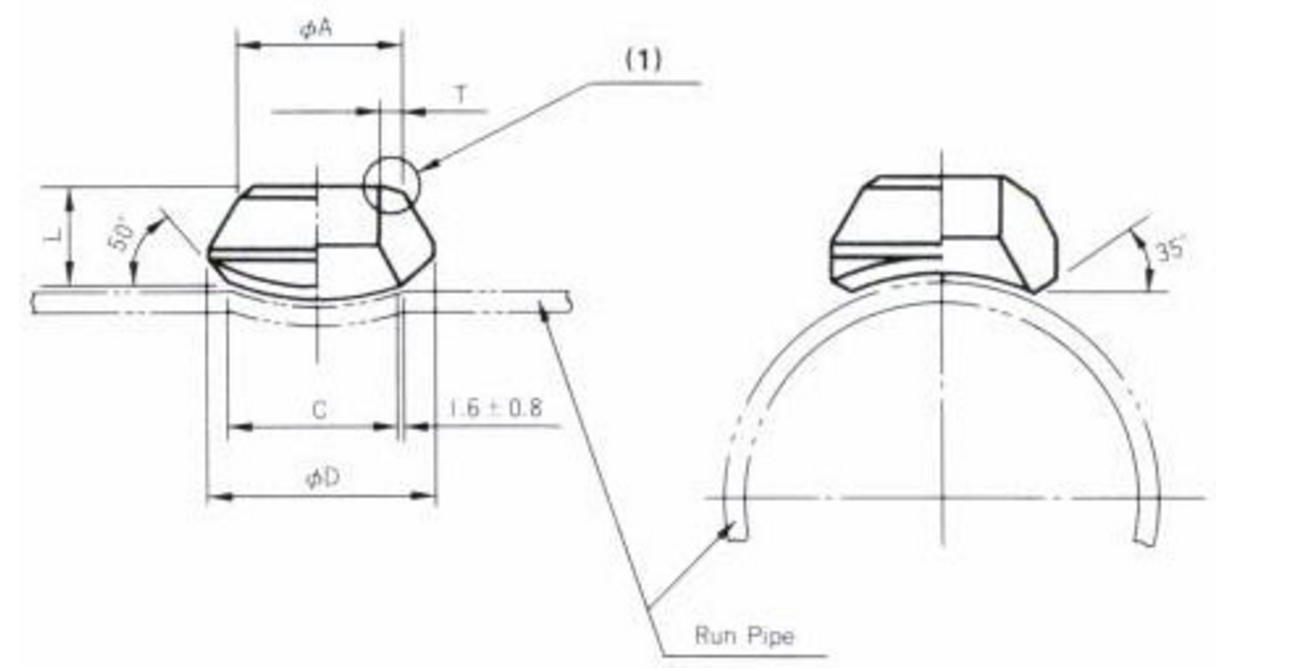

In PCF exports, OLETs typically specify the pipe size as the outward (off the pipe) connection (typically an NPS size). However the OLET set-on hole size at the connection to the run pipe/shell is not specified.

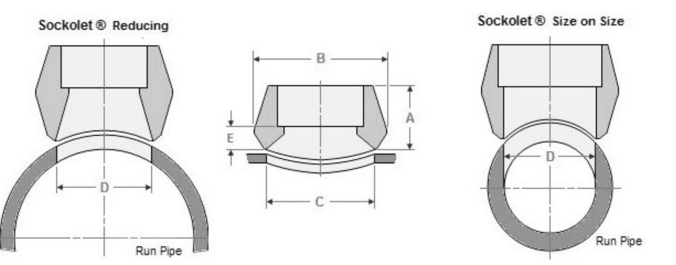

Here are examples of OLETs from Aesterion showing that the set on hole is not the same as the outward connection.

OLETs can have the same (NPS) sizes on both ends. However this is not always the case.

Specifying fields of Hole Diameter, Cut-Surface (ID or OD) and bevel are achieved by field mapping or using cut templates (covered in section 5)

OLET lookup Tables

Often data coming out of CAD (and the CAD part catalogs) lacks required fabrication information for cutting the set-on pipe holes for OLETS. To address this, PypeServer offers an OLET mapping tool that gathers OLET information during importing, such as OLET name, OLET Class, OLET Type and OLET outlet size to then match that to an item in an OLET lookup table. The matching item in the table will specify the OLET set-on hole size, the bevel, and (optionally) product ID and supplier. Please contact PypeServer for further information.

Getting your OLETs to show up as OLETs in PCF

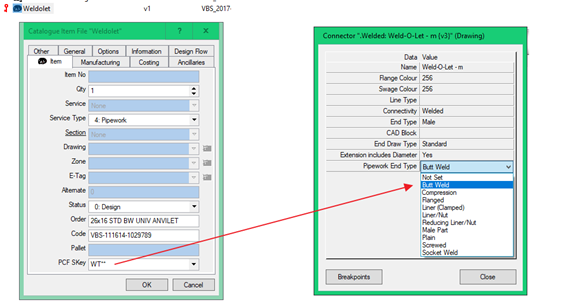

In most CAD systems, the PCF exporter will look at the part's SKEY to determine if it is an OLET. That SKEY is typically set in the catalog data for an OLET.

For example in AutoDesk Revit, if a customer gets ITM data for their OLET components, and the SKEY is not set to an OLET SKEY, then that part will be exported as a TEE-SET-ON. (You can still use that data to create a hole on your run pipe, but you will need to filter out the OLET during importing.)

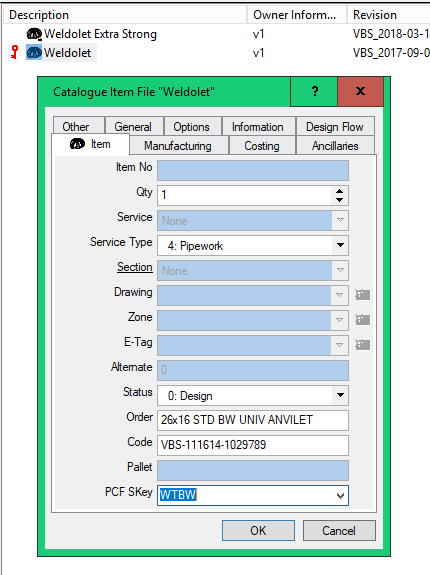

If the customer can edit the SKEY in the ITM catalog data, then set the OLET SKEY to any of these:

HCSC HCSW LABW LASC LASW NI** SKSW SWBW THSC WTBW

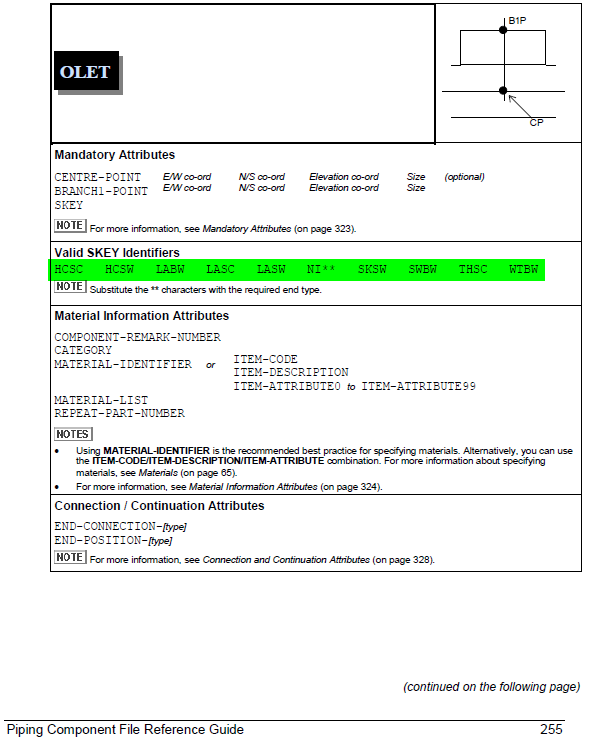

Per the PCF specification:

OLET Example with the set-on HoleSize specified in the ITEM-DESCRIPTION

This sample shows how to add data to the ITEM-DESCRIPTION (or other) field such that the data can be mapped into PypeServer:

OLET

CENTRE-POINT 10.4664 8.8345 -0.0000

BRANCH1-POINT 10.4664 5.6154 3.2191 0.7500 PL

ITEM-CODE 10

ITEM-DESCRIPTION Socket Weld Half Coupling HoleSize 0.875 Bevel 37.5

Note: the HoleSize keyword can also be HoleDiameter, but the then the Item-Description must be mapped to the "HoleDiameter" field on the Cut Tab in the mapping.

The section "The Need for OLET Cut Templates" in this document explains the need for custom Hole diameters and bevels.

Flagging end-cuts and holes so that they must be verified later

It is not uncommon for the CAD design and importing to be done before the actual OLET supplier or OLET dimensions are known. This section explains how you can require the hole cut to be "Verified" by someone before it can be loaded to the machine.

In the DESCRIPTION of a TEE-SET-ON/IN, or an OLET, add the keyword "VerifyHole", as shown here:

OLET

? ? CENTRE-POINT ?10.4664 ?8.8345 ?-0.0000

? ? BRANCH1-POINT ?10.4664 ?5.6154 ?3.2191??0.7500??PL

? ? ITEM-CODE ?10

? ? ITEM-DESCRIPTION ?Socket Weld Half Coupling VerifyHole

The VerifyHole keyword is then mapped to the "Verify" field in PypeServer for the hole cut, which causes the "Verify" flag to be set in the cut in PypeServer, as shown below.

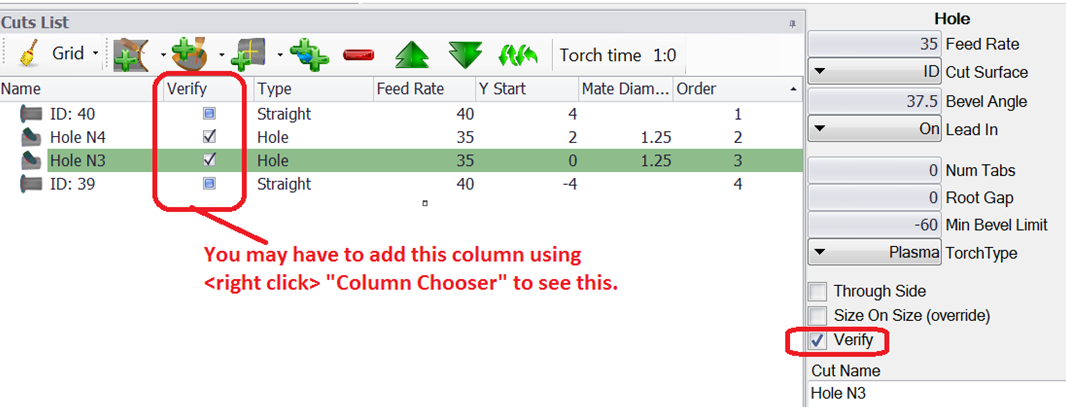

When the Verify box is checked (for each specific cut), then that cut (and thus the Part or Nesting it is in) cannot be loaded to the machine. The operator must verify the cut and uncheck the verify boxes so that the Cut, Part or Nesting can be loaded to the machine.

Similarly, you can flag endcuts to be verified, though because each end-cut can have specific requirements, this is more often done using end cut templates.

Mapping Additional data

This section discusses how you can directly map data from the PCF file into PypeServer data fields. You will need to use a field mapping to define the keywords (which can be any keywords you want), and then map those keywords to the respective PypeServer fields.

Setting Pipe Sizes Pipe Non-Standard Size example

This sample shows the use of a keyword "WallThickness" (case insensitive) to define the pipe's non-standard (non-NPS) wall thickness.

PIPE

END-POINT 34.5570 8.8345 -0.0000 8.0000 PL

END-POINT -37.5680 8.8345 -0.0000 8.0000 BW

ITEM-CODE 2 Main Run

ITEM-DESCRIPTION WallThickness .275 A53

FABRICATION-ITEM

You will need to use a field mapping to define the "WallThickness" keyword, and then map that keyword to the respective PypeServer Wall Thickness field.

NOTE: for PIPE and TEE-SET- types, a Cut Template is a more powerful option because you will need to specify values for both ends of the pipe (for PIPES) and additionally for TEE-SET-types the hole created on the mate pipe.

Mapping Cut Templates to End Cuts for PIPE and the outer end of a TEE-SET- type

In PCF (exported from most PCF CAD importers) the endpoints (the end cuts) are specified as a type. From most CAD systems this is a two letter description defining the cut type. Shown below are PL and BW. (The meaning of these is defined in the CAD system). These can be mapped to cut templates in PypeServer, and thus the meaning can be augmented or clarified in PypeServer-based on the cut templates set up in PypeServer.

PIPE

END-POINT 34.5570 8.8345 -0.0000 8.0000 PL

END-POINT -37.5680 8.8345 -0.0000 8.0000 BW

ITEM-CODE 2 Main Run

ITEM-DESCRIPTION SCH 40 A53

FABRICATION-ITEM

In preparing your PCF file, CAD operators need to make sure to properly define their end-cuts with the proper names (like PL and BW) so that PypeServer's cut templates can put the right information on the end-cuts. Typically what is defined in the cut templates for these end-cuts are the Bevel Angles. Other fields may be set as well, such as root-gap, feedrate, tabs, etc.

Mapping Cut Templates to the Set-On side of a TEE-SET-ON

TEE-SET-ONs are more complex that PIPE types, in that a) the PCF data does not define the set-on end cut type, and b) the hole information is not provided at all.

Here is an example of a TEE-SET-ON where the set-on saddle end-cut and the hole are each defined by different cut templates.

TEE-SET-ON

? ? CENTRE-POINT? 10.4664? 8.8345? -0.0000

? ? BRANCH1-POINT? 10.4664? 5.6154? 3.2191? 0.7500? PL

? ? SKEY TESO

? ? ITEM-CODE? 10

? ? ITEM-DESCRIPTION Socket Weld Half Coupling?HoleCutTemplate HoleType1 MateSaddleCutTemplate SaddleCutType4?SCH 40

Notes:

• The HoleCutTemplate and MateSaddleCutTemplate identifiers can be any names you choose. They are defined when creating the mapping.

• When mapping, these cut templates can be in different libraries. This allows users to have a HoleCutTemplate library which is primarily used for OLETs.

Mapping Cut Templates for the hole created by an OLET

The section "The Need for OLET Cut Templates" in this document explains the need for custom Hole diameters and bevels.

This sample shows how to add a cut template name to the ITEM-DESCRIPTION (or other) field such that the cut template will provide cut information for the OLET hole-including hole diameter, bevel angle, and cut surface (ID or OD).

OLET

CENTRE-POINT 10.4664 8.8345 -0.0000

BRANCH1-POINT 10.4664 5.6154 3.2191 0.7500 PL

ITEM-CODE 10

ITEM-DESCRIPTION Socket Weld Half Coupling HoleCutTemplateName OLET1

In the example above the name HoleCutTemplateName can be any keyword. This field is followed by the cut template name for the given OLET type.

Notes about Cut Templates libraries and multiple Mappings

• Mappings can refer to one or more Cut Template libraries.

  • This means that if you use one set of OLET cut template names in your PCF file, you could create different mappings for different OLET providers.

• Cut Template libraries can be referred to by multiple Mappings.

  • You can have multiple Cut Templates Libraries and can map any given field to any given library. What this means is that you can create an Olet-only cut template library. This is useful for maintaining a list of OLETs.

Creating an OLET Mapping Lookup file for use in PypeServer

In many CAD cases the CAD operator adds an OLET to a model, and selects the outflow diameter, but

• The set-on diameter is not specified in the catalog, and

• The user has no way to specify the set on diameter.

However, it is in many cases possible to output a UID for each OLET size. Users can output a list of these OLET IDs and use those IDs to create a PypeServer lookup table that will assign set-on diameter sizes. (Customers can do this in Revit).

The output format to create is as follows, where each line represents a specific OLET part ID.

[

{"BevelAngle":0.0,"CutName":"123781740374809","CutType":"Hole","Mate1Diameter":1.125,"YStart":0.0}

{"BevelAngle":0.0,"CutName":" 20d8e-b56f-4fb5-2379-5c","CutType":"Hole","Mate1Diameter":1.25,"YStart":0.0}

]

• The CutName can be letters and numbers and dashes, no spaces.

• The Mate1Diameter is the set-on (or set-in) diameter that the user wants to cut on the run pipe that the OLET is attaching to.

That lookup file can be then be loaded into PypeServer. PypeServer support can help with that.

Once this file is loaded into PypeServer, then the OLETs UNIQUE-COMPONENT-IDENTIFIER can be mapped to set-on hole cuts for OLETs so that the importing is automatic.

One PCF Example

There are many ways to configure PCF export data for this import example. Much of that depends on where your data is coming from, what details you want to come from CAD vs. leaving some details to the Machine Operator, your specific workflows, etc.

The Spool Drawing

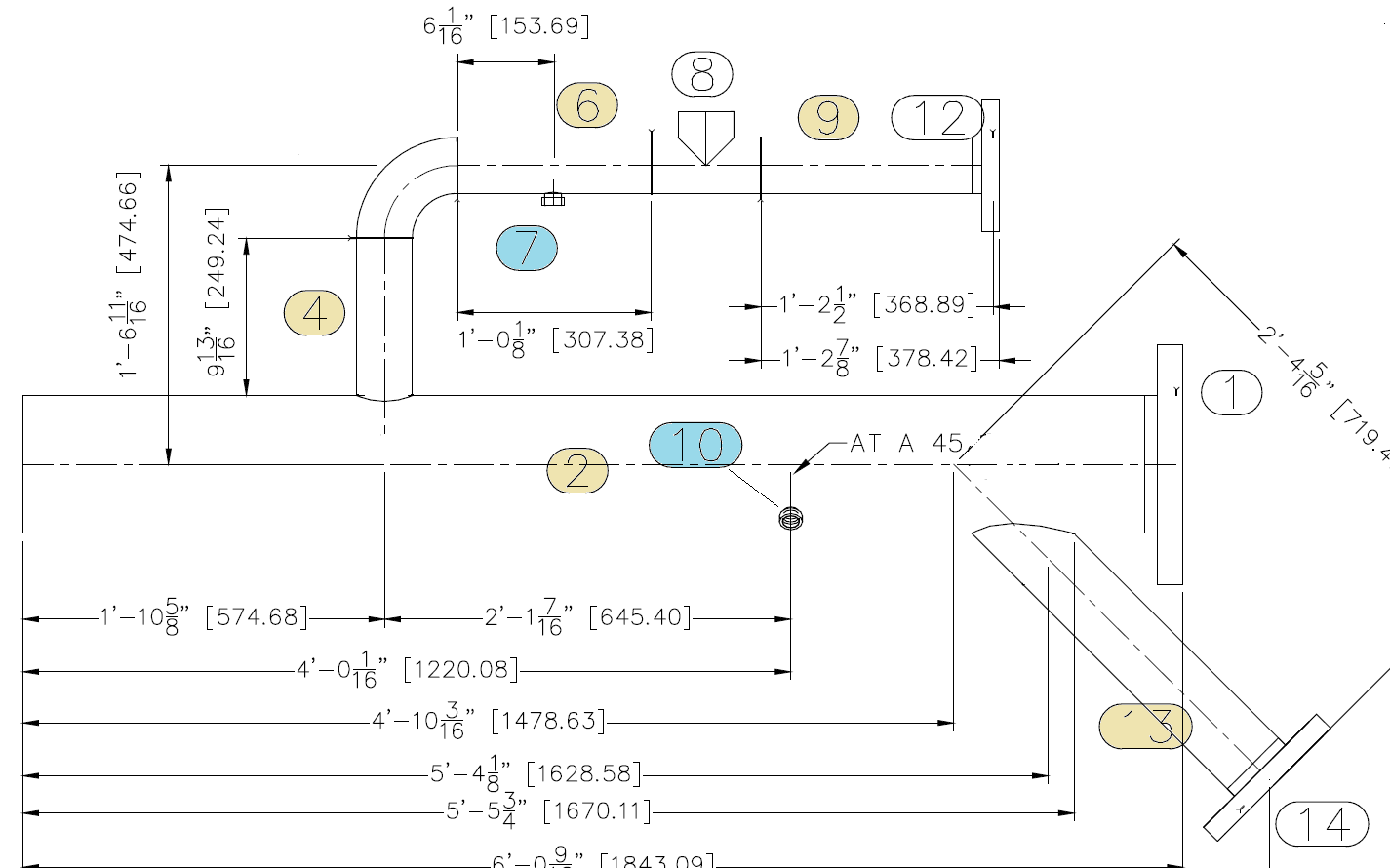

Here is a simple spool, with the PCF file shown below.

PypeServer:

• Will import items 2, 4, 6, 9 and 13.

• Will use items 7 and 10 (OLETs) to create holes in parts 2 and 6 respectively.

The PCF File with Comments

This PCF file shows numerous ways to map data. Users typically settle on a few features to meet their importing needs.

Notes on the file below:

• Some lines have been removed for clarity

• When mapping, all keywords in bold red can be changed to any keyword you want.

• Keywords in bold blue are default behaviors for the importer, though by mapping they can be changed to different names as well.

• The sample shows most of the fields being mapped in ITEM-DESCRIPTION. This is what most of our customers use due to restrictions in how data (parts) flow into their CAD systems from part catalogs. However you can use other fields for this data.

ISOGEN-FILES ISOGEN.FLS

UNITS-BORE INCH

UNITS-CO-ORDS INCH

UNITS-BOLT-LENGTH INCH

UNITS-BOLT-DIA INCH

UNITS-WEIGHT LBS

PIPE

END-POINT 34.5570 8.8345 -0.0000 8.0000 PL

END-POINT -37.5680 8.8345 -0.0000 8.0000 BW

ITEM-CODE 2 Main Run

ITEM-DESCRIPTION SCH 40² A53

SPOOL-IDENTIFIER SPOOL1³

ITEM-ATTRIBUTE0 CID=[2041]

TEE-SET-ON

CENTRE-POINT -14.9430 8.8345 -0.0000

BRANCH1-POINT -14.9430 22.9595 -0.0000 3.0000 PL

SKEY TESO

ITEM-CODE 4 Tee on 2

ITEM-DESCRIPTION SCH 40 SaddleSetOnCutTemplate Saddle1⁴ HoleCutTemplateName Hole1⁵

SPOOL-IDENTIFIER SPOOL2

ITEM-ATTRIBUTE0 CID=[2875]

PIPE

END-POINT 1.7211 27.5220 -0.0000 3.0000 BW

END-POINT -10.3805 27.5220 -0.0000 3.0000 BW

ITEM-CODE 6 BVxBV with Olet

ITEM-DESCRIPTION SCH 40 A53B GR B ERW

SPOOL-IDENTIFIER SPOOL2

ITEM-ATTRIBUTE0 CID=[2041]

OLET

CENTRE-POINT -4.4042 27.5220 -0.0000

BRANCH1-POINT -4.4042 25.5320 -0.0000 0.7500 PL

SKEY TESO

ITEM-CODE 7 Olet on 6

ITEM-DESCRIPTION Socket Weld Half Coupling HoleCutTemplateName OLET1⁶

SPOOL-IDENTIFIER SPOOL2

ITEM-ATTRIBUTE0 CID=[2875]

TEE⁷

END-POINT 8.5336 27.5220 -0.0000 3.0000 PL

END-POINT 1.7836 27.5220 -0.0000 3.0000 PL

CENTRE-POINT 5.1586 27.5220 -0.0000

BRANCH1-POINT 5.1586 30.9020 -0.0000 3.0000 PL

SKEY TEPL

ITEM-CODE 8 Pulled Tee

ITEM-DESCRIPTION Straight Tee

SPOOL-IDENTIFIER SPOOL2

ITEM-ATTRIBUTE0 CID=[2047]

PIPE

END-POINT 23.0570 27.5220 -0.0000 3.0000 BW

END-POINT 8.5961 27.5220 -0.0000 3.0000 Bw

ITEM-CODE 9 BVxBV

ITEM-DESCRIPTION SCH 40 A53B GR B ERW

SPOOL-IDENTIFIER SPOOL2

OLET

CENTRE-POINT 10.4664 8.8345 -0.0000

BRANCH1-POINT 10.4664 5.6154 3.2191 0.7500 PL

SKEY TESO

ITEM-CODE 10

ITEM-DESCRIPTION Socket Weld Half Coupling HoleDiameter 0.875⁸ BevelAngle 37.5⁹ VerifyHoleCut¹⁰

FABRICATION-ITEM

PIPING-SPEC Piping Materials

SPOOL-IDENTIFIER SPOOL1

ITEM-ATTRIBUTE0 CID=[2875]

TEE-SET-ON

CENTRE-POINT 20.6457 8.8345 -0.0000

BRANCH1-POINT 40.3656 -10.8854 -0.0000 4.0000 PL

SKEY TESO

ITEM-CODE 13 Tilted Branch on 2

ITEM-DESCRIPTION BRANCH WELD 45 PSPIPE¹¹ SCH 40

SPOOL-IDENTIFIER SPOOL1

MATERIAL-IDENTIFIER 1

ITEM-ATTRIBUTE0 CID=[2875]

MATERIALS

MATERIAL-IDENTIFIER 1

DESCRIPTION A53B GR B ERW SCH 40 ¹²

CAD Specific Information

AutoDesk Fabrication CAD MEP

This section covers some problems that customers have faced in the past. Please also refer to the document "Importers" to see additional information about exporting .pcf from AutoDesk Fabrication CAD MEP.

Getting OLETs to output as OLET instead of TEE-SET-ON

This can be done a couple of ways.

One, just put the PCF SKey in. https://forums.autodesk.com/autodesk/attachments/autodesk/371/16550/1/Isogen%20Symbol%20Keys.pdf

?

The first two letters are the item and the last two are the connection.

?

The other way is to use wildcards for the connection and have the Pipework End Type pick up the last two. (This keeps your PCF Skey list a lot shorter.)

?
